FESTOOL 576734 PLUNGE-CUT SAW WITH SCORING FUNCTION TSV 60 KEB-PLUS 110v
Next day delivery available on this item
-
Functions
Splinter-free sawing like never before. Perfect from the very first cut. The TSV 60 K plunge-cut saw with scoring function.
Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, we have achieved exactly that. Splinter-free sawing on both sides now from the very first cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.
- Splinter-free: The scoring ensures splinter-free work results on both sides from the very first cut.
- Long-lasting: Diamond scoring saw blade with very long service life for perfect cut quality time after time.
- Saw system: comprehensive system with ideal accessories for perfect panel cutting.
- Safer: the unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece
- Versatile: 60 mm cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail.
- Swivels with: perfect scoring, even on mitre cuts from 0° to 45°.
- Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.

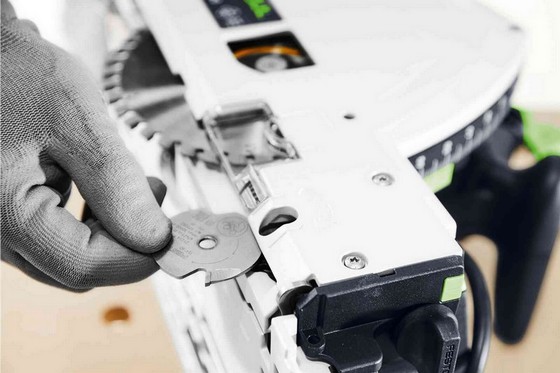

- Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.
- Constant: EC-TEC motor in combination with the thin kerf saw blades ensures work progresses without difficulty whilst requiring less effort.
Product highlights
Splinter-free in a single cut.
Sawing system for perfect panel cutting.
Whether it's on the construction site or in the workshop, even large panels can be cut with precision. Thanks to Festool system accessories, it cuts just as well as the stationary machine: You can work precisely even while on the move, and can enjoy splinter-free results to suit your needs.
Protects against dangerous kickbacks.
Usage
Main applications
- Splinter-free cutting of chipboard, specially veneered and plastic-coated panels
- Splinter-free cutting of HPL compact panels such as Trespa®
- Precise plunge cuts in materials up to 60 mm thick
- Perfect, splinter-free cutting to length of interior doors
- Cutting recesses in doors and kitchen worktops
- Cross cuts with the FSK cross cutting guide rail (floor and façade panels)
Internal code: AB112594
- Power consumption (circular saw/scorer)1 500 / 150 WNo-load speed (circular saw/scorer)3.000 - 6.800 / 22.000 min⁻¹Saw blade diameter (circular saw/scorer)168 / 47 mmAngular range0 - 45 °Cutting depth0 - 62 mmDust extraction connection diameter27/36 mmCable length4.00 mDrive typeMainsProduct weight6.20 kgTransport weight incl. accessories9.00 kg
-
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
-
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
-
MMC Multi Material Control electronics
“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
-
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
-
Guide system
Patented guide system for safe guidance of saws and router bits.
-
Cross cutting guide rails
Compound mitre saw system which securely joins machine and cross cutting guide rails together for precisely accurate repeat cuts.
-
Kickback stop
The intelligent kickback stop prevents dangerous kickbacks when sawing and plunging into the workpiece, thereby minimising the risk of injury and protecting the workpiece.
-
Quick-acting brake
For safe work when planing, sawing and routing.
-
EC-TEC motor
The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.
-
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
Sawing wood: A-weighted sound pressure level, LpA90.00 dB(A)Sawing wood: A-weighted sound power level, LWA101.00 dB(A)Sawing wood: Total vibration average, Ah2.50 m/s²Sawing wood: Standards series EN62841Sawing wood: Uncertainty (noise) K3.00 dBSawing wood: Uncertainty (vibration) K1.50 m/s²
-

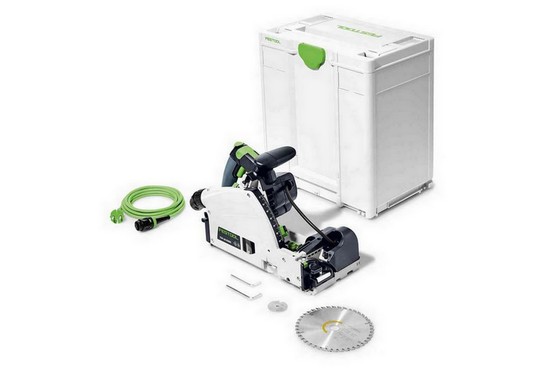

Allen key 4
Flag window; vision panel
Hex key, WAF 5

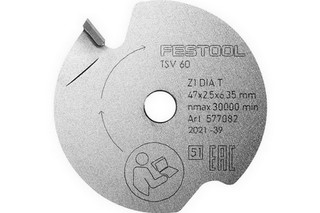

Scoring saw blade DIA 47 x 2.5 x 6.35 T1
Systainer SYS3 M 437
Wood fine cut HW 168 x 1.8 x 20 WD42 Circular saw blade
