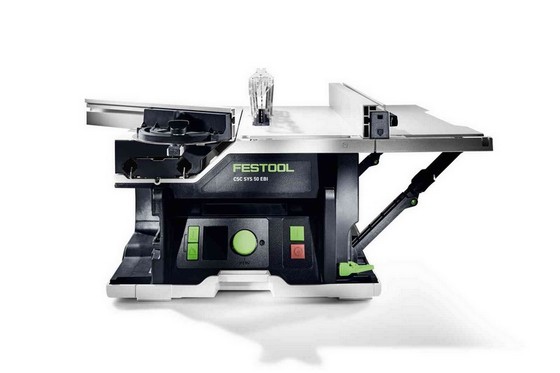

FESTOOL 576820 CSC SYS 50 EBI- BASIC CORDLESS TABLE SAW

Ref: 576820
new
Feefo logo
Delivery Next day delivery available on this item
Cordless table saw CSC SYS 50 EBI-Basic More
£1,678.80 inc. VAT
(£1,399.00 exc. VAT)
  • Precise sawing to go. The cordless table saw in Systainer format.

    The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.

    • Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2° to 47°.
    • Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.

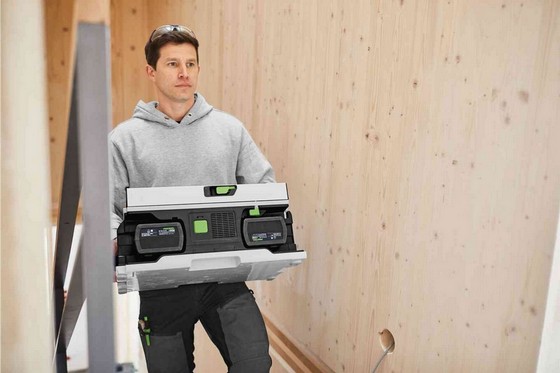

    • Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
    • Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.
    • Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
    • Convenient: Four saw blade positions can be saved and selected via the digital display.
    • Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
    • Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70°
    • Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
    • Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
    • Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
    • Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
    • Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
    • Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
    • Healthy working with a system: Ideal also in combination with the Festool cordless extractors
    • Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment

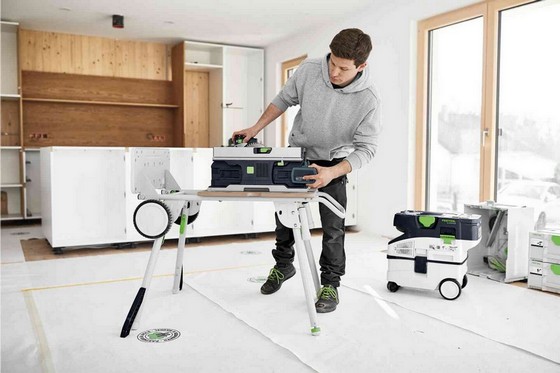

    • Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
    • Unique: Three-year warranty for battery packs and chargers too

    Uniquely compact. Extremely versatile.

    So compact, it fits into a Systainer - you will always have precise sawing to hand, with the CSC SYS 50 cordless table saw. This allows workshop quality sawing, on the construction site. It is impressively versatile, with parallel cuts of up to 280 mm, a cross-cut width of up to 450 mm and angled cuts of -2° to 47°.

    Precise cuts at the press of a button.

    You can set the height and angle accurately to a tenth of a millimetre with unique digital operation – more exact than with any yardstick, with 100% repeat accuracy. Even the most demanding cuts will succeed with unprecedented precision, with the robust stop system made up of a parallel side fence, angle stop and sliding table.

    As powerful as being connected to the mains.

    Even for rip cuts in solid wood, you won't notice any difference in power compared with mains-powered machines – the 2x18 V dual battery system, in combination with the brushless EC-TEC motor will impress you with maximum power and torque.

    Main applications

    • Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
    • Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
    • Angled cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 21–32 mm) thanks to tilting saw blade
    • Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
    • Transport practically in the handy Systainer format

    Internal code: TP133220

  • Battery voltage
    2 x 18 V
    Idle engine speed
    4 500 – 6 800 min⁻¹
    Saw blade location hole
    20.00 mm
    Inclination angle
    -10 - +47 °
    Cutting height 0°
    0 - 48 mm
    Cutting height 45°
    0 - 34 mm
    Cutting height -10°
    21 - 32 mm
    Mitre angle
    0 - 70 °
    Parallel cut width
    280.00 mm
    Tabletop height
    280.00 mm
    Dimensions (L x W x H)
    512 x 396 x 296 mm
    Dust extraction connection diameter
    27/36 mm
    Drive type
    Battery
    Product weight
    15.00 kg
    transportgewicht
    23.50 kg

    • EC-TEC motor

      The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

    • Groove in saw table

      lever clamps on the saw table fix the workpiece securely and prevent it from shifting accidentally

    • CLEANTEC

      Integrated bayonet fitting as the connecting element between the extractor and the tool.

    • MMC digital electronics

      Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.

    • Bluetooth®

      Bluetooth® communication between battery pack and extractor.

    • Antistatic function

      Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

    • IoT

      Connecting with the Festool Work app enables operating data read-outs as well as individual settings options on the tool for efficient working.

    • Quick-acting brake

      For safe work when planing, sawing and routing.



      Sawing: A-weighted sound pressure level, LpA
      85.00 dB(A)
      Sawing: A-weighted sound power level, LWA
      98.00 dB(A)
      Sawing: Uncertainty (noise) K
      3.00 dB

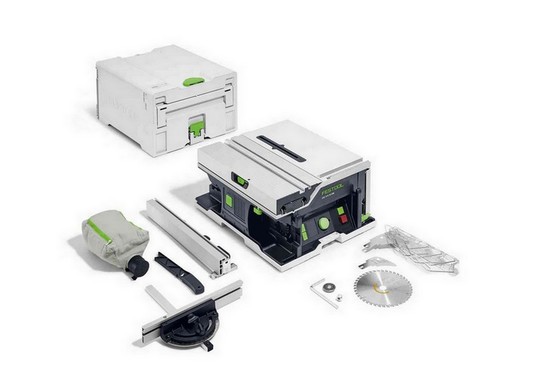

  • Chip collection sack

    Hex key, WAF 6

    Parallel side fence

    Preset profile setting rail

    Splitting wedge for concealed cuts

    Splitting wedge with protected hood

    Wood fine cut HW 168 x 1.8 x 20 WD42 circular saw blade

    Workpiece holder
