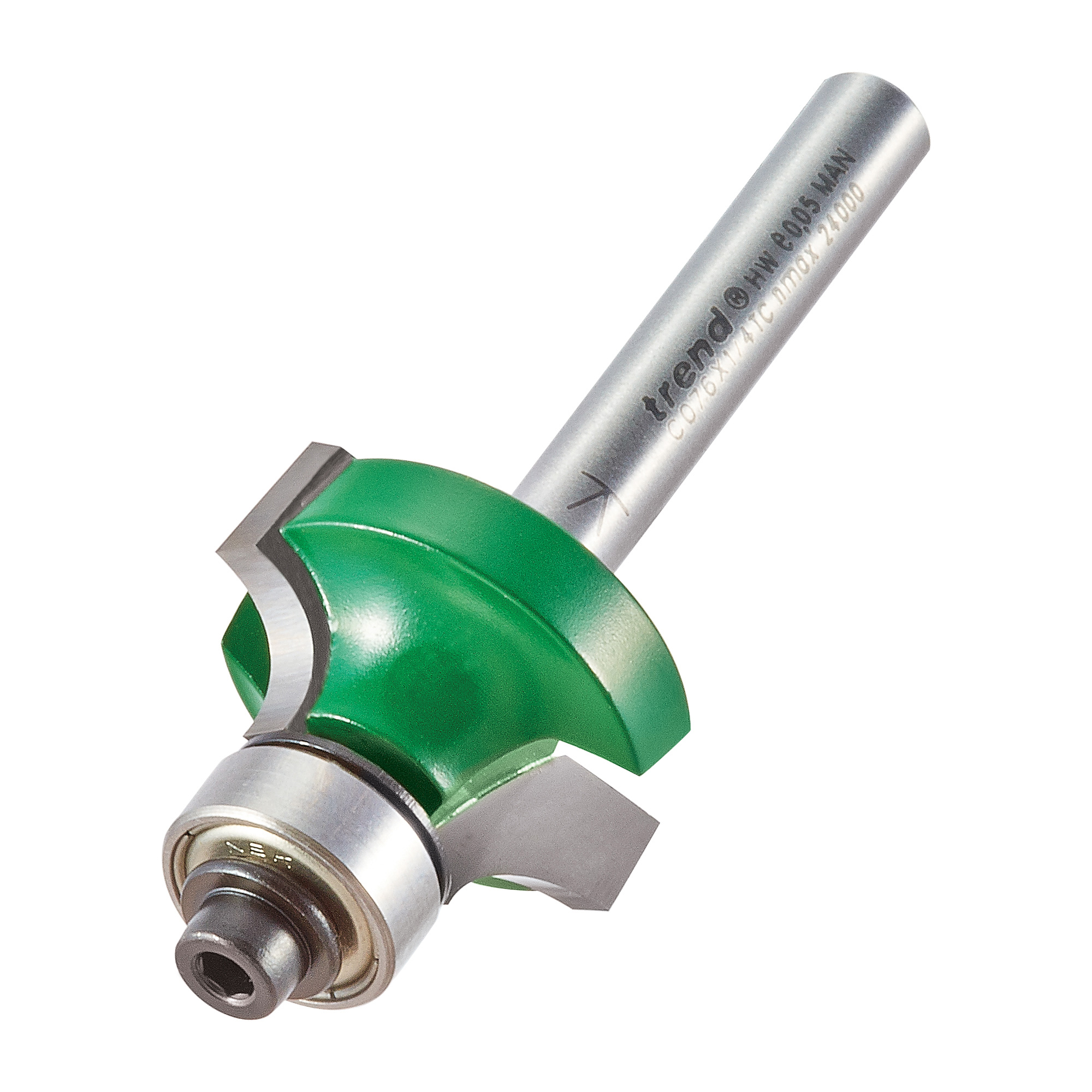

TREND C076X1/4TC ROUND/OVER 6.3MM RAD X 12.7MM CUT
Ref: C076X1/4TC
new
Next day delivery available on this item
Self-guiding cutters for rounding over edges do not require a side fence. Used for producing Ovolos and Round overs.
More
£40.13 inc. VAT
(£33.44 exc. VAT)
-
TREND C076X1/4TC ROUND/OVER 6.3MM RAD X 12.7MM CUT
- Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.

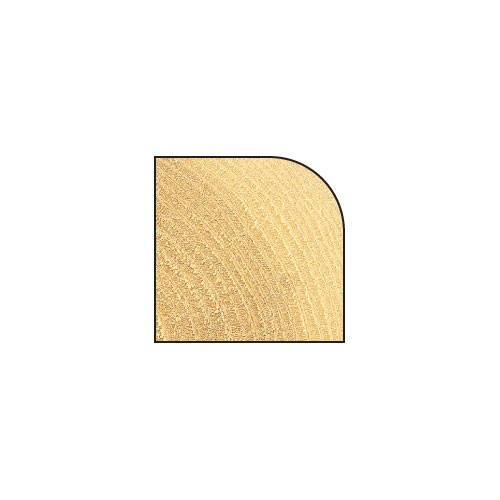

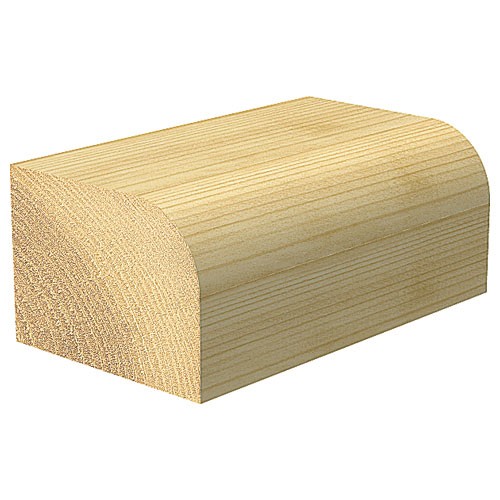

- Use the larger bearing for a round-over.

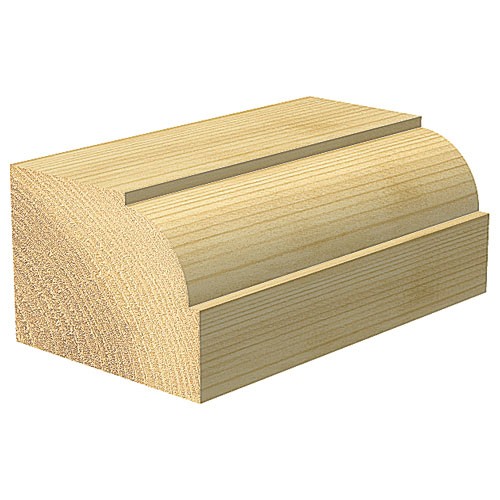

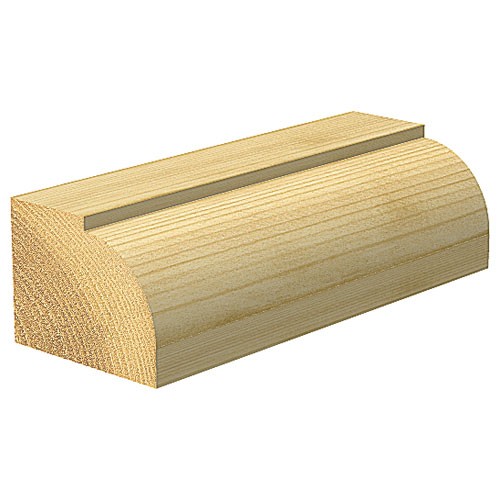

- If the cutter is lowered, a top quirk can be produced.

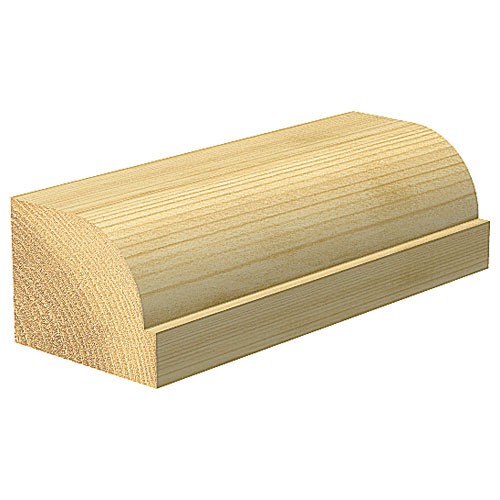

- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.
Internal code: TP262050
TREND C076X1/4TC ROUND/OVER 6.3MM RAD X 12.7MM CUT

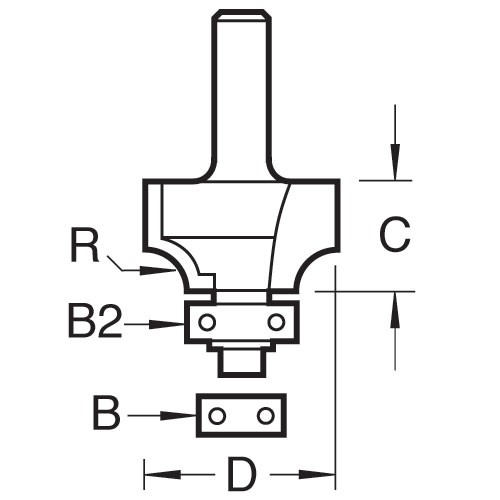

- D=1 inch
- D=25.4 mm
- C=1/2 inch
- C=12.7 mm
- B=9.5 mm
- B2=12.7 mm
- R=6.3 mm
- R=1/4 inch
- Overall length=64 mm
- Shank Diameter=1/4 inch
