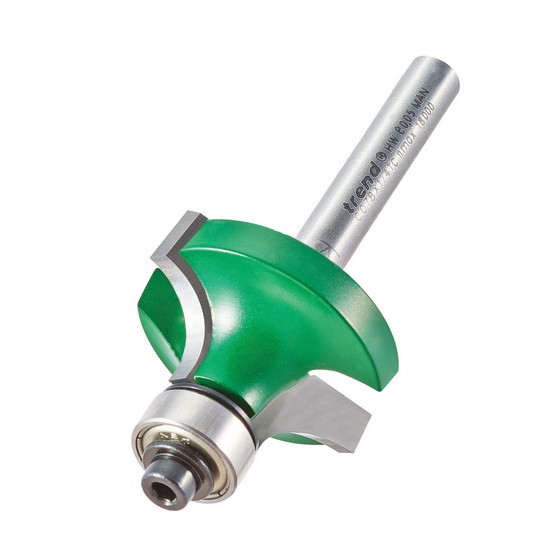

TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT
Ref: C078X1/4TC
new
Next day delivery available on this item
Self-guiding cutters for rounding over edges do not require a side fence. Used for producing Ovolos and Round overs.
More
£46.67 inc. VAT
(£38.89 exc. VAT)
-
Unfortunately this item is currently out of stock.
-
-
TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT
- Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.
- Use the larger bearing for a round-over.
- If the cutter is lowered, a top quirk can be produced.
- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.
Internal code: TP262040

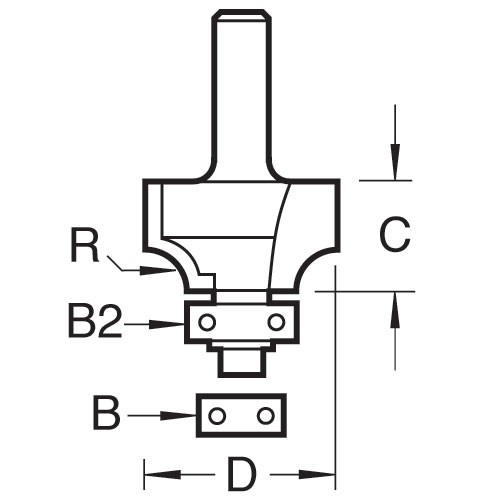

TREND C078X1/4TC ROUND/OVER 9.5MM RAD X 15.9MM CUT
- D=31.7 mm
- C=5/8 inch
- C=15.9 mm
- B=9.5 mm
- B2=12.7 mm
- R=9.5 mm
- Overall length=67.5 mm
- Shank Diameter=1/4 inch
