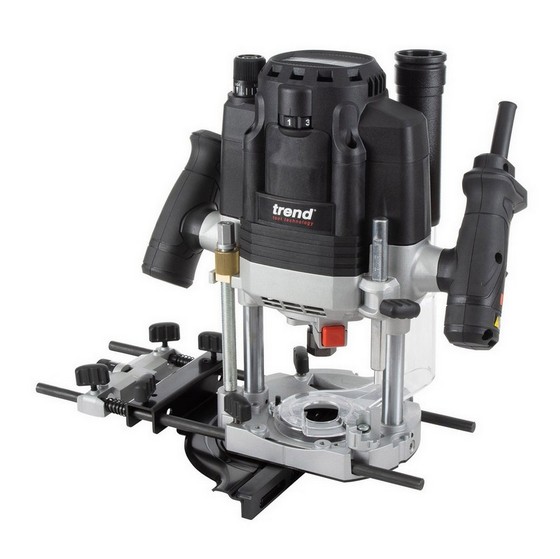

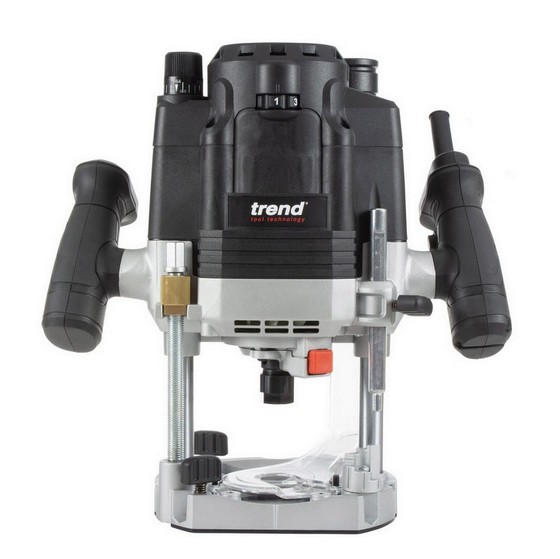

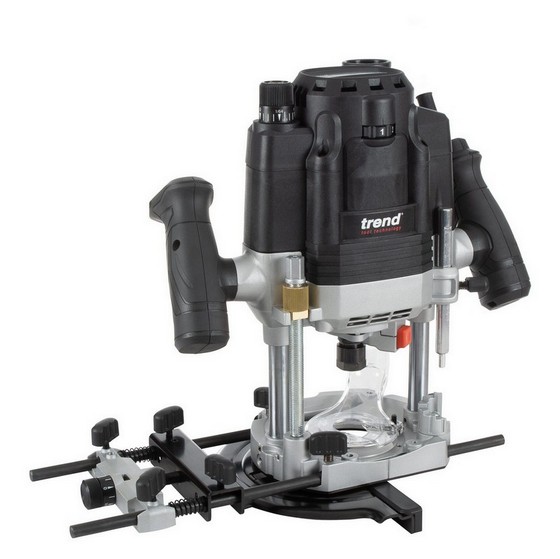

TREND 1/2in 2200W DUAL-MODE PLUNGE ROUTER 110v T8ELK
-
Unfortunately this item is currently out of stock.
-
-
Trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling.

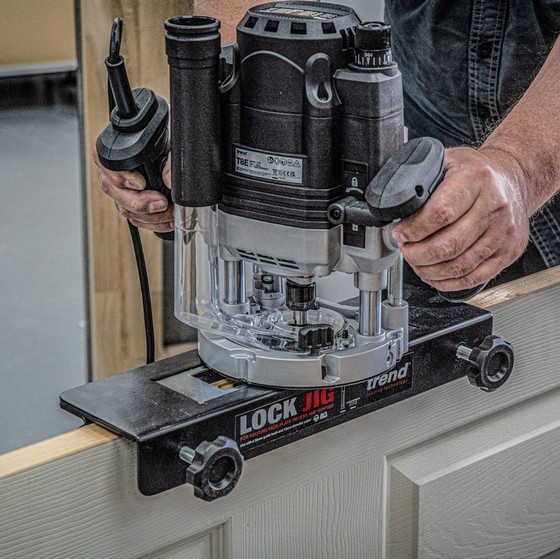

- 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
- Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

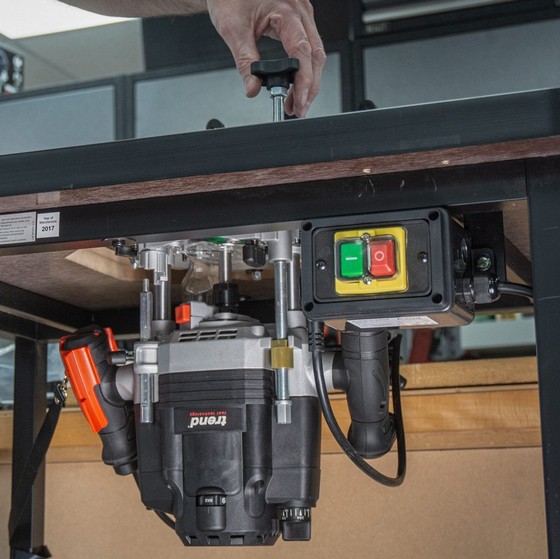

- Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
- 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
- Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
- Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
- 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
- Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
- Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
- Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Not compatible with CRT/MK3L
- *3 year warranty – Online registration required
Internal code: AB110914
Duty Rating
Medium/TradeMotor Power
2200WAC Voltage
110VPlug Type
110v 32A (not supplied)Supplied Collet Size
1/2“Plunge Stroke (Max)
80mmNo Load Speed
10,000-26,000rpmSupplied Guide Bush
30mmFence Rod Length
360mmFence Rod Centres
84mmFence Rod Diameter
8mmBase Aperture Diameter
75mmCutter Diameter (Max)
50mmDust Spout Internal Diameter
35mmSound Pressure (Lpa)
94.1 dB(A)Acoustic Pressure (Lwa)
105.1 dB(A)Hand/Arm Vibration
<3.8m/s2Weight (Net)
5.8kgPower Cable Length
3mRouter Table Compatible
YesEnd of Life
See environmental policy
