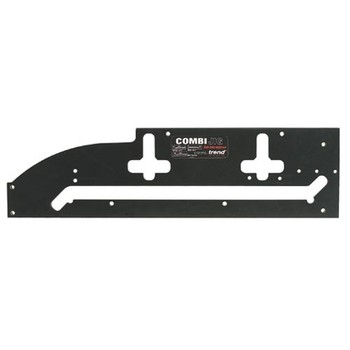

TREND COMBI66 580 - 650MM WORKTOP JIG

Ref: Trend COMBI66

Dispatched within 2 to 3 working days

A worktop jig, designed to enable all 1/2 inch shank plunge routers to cut precise butt & scribe joints in postform workstops. More

TREND COMBI66 580 - 650MM WORKTOP JIG
- Machined from hardwearing solid laminate.
- Will produce a joint in 15 minutes including setting-up time.
- Out-of-square joints can be accommodated.
- Facilities to cut various widths of board and thicknesses up to 42mm.
- Integral panel bolt connector recessing template with easy spanner access.
- Width setting stop for accurate positioning.
- Supplied with clear & comprehensive instructions for use.
- A single male and female template in 16mm solid laminate.
- Facility to join boards from 500mm to 650mm wide. Two bolt recess slot for connecting bolts.
- Three alloy location bushes & width setting stop.
- Cuts out of square joints (max. 3 degree).
- Jig requires:
- A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
- A template guide bush with 30mm outside diameter Ref. GB30
- A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
- Two 100mm (4 inch) throat clamps.
Internal code: ZZ312970
TREND COMBI66 580 - 650mm WORKTOP JIG
- Length: 880 mm
- Width: 233 mm
- Thickness: 16 mm
- Weight: 3.3kg
- Female cut material width loss: 23 mm
- Bolt recesses: 2
- Bolt recess centres: 300 mm
Jig Requirements
- Guide bush: 30 mm
- Plunge router: 1/2-inch (min. 1300 watts)
- Cutter: 12.7 mm x 50 mm cut
- Clamps: Two
TREND COMBI66 580 - 650mm WORKTOP JIG
- 3x Location Bushes
- 1x Length Stop
