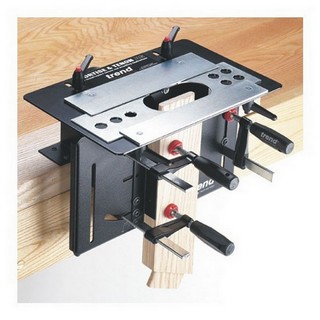

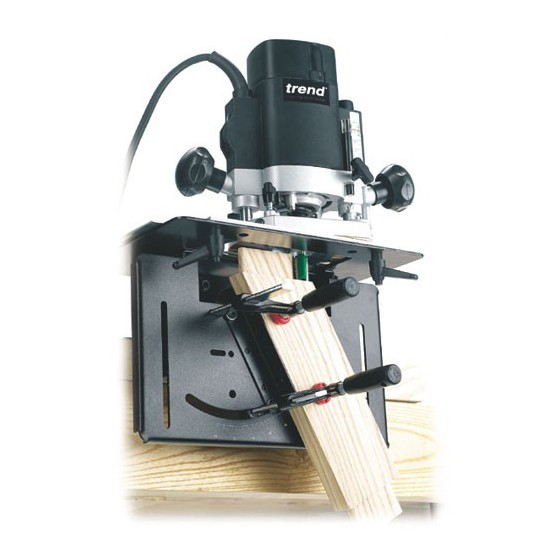

TREND MT/JIG MORTICE AND TENON JIG
Ref: MT/JIG
new
Next day delivery available on this item
This Trend Jig enables mortise & tenons and dowel joints to be cut with a router. Ideal for joiners fabricating cabinets, chairs and tables.
More
£238.80 inc. VAT
(£199.00 exc. VAT)
-
TREND MT/JIG MORTICE AND TENON JIG
- CNC precision manufactured plates and body
- One set-up for both mortise and tenon giving perfectly fitting joints
- Fully adjustable for compound angle joints up to 45 degree
- Reversible templates to produce round and square end tenons
- Templates can be used for accurate dowelling applications
- Cuts mortise & tenon sizes of 6mm to 16mm
- Guide bushes are included but cutters are required
- A Unibase may be required for certain makes & models of router
- All tenons are cut with a 16mm diameter straight cutter (Ref. C025B)
- The width of the tenon is adjusted by using different guide bush diameters
- Ideal for cabinet, chair and table
Internal code: AB110704
TREND MT/JIG MORTICE AND TENON JIG
- Material thickness min.: 12 mm
- Material thickness max.: 47 mm
- Tenon thickness min.: 4.8 mm
- Tenon thickness max.: 16 mm
- Tenon width max. (using vertical guide*): 90 mm
- Tenon length max. (Approx.**): 25 mm
- Mortise length max. (using vertical guide***): 90 mm
- Angle tilt compound -10 degree to 45 degrees
* on end of 100 mm wide material
** depends on cut length and plunge depth of the router
*** unlimited if vertical guide removed and wood re-positionedTREND MT/JIG MORTICE AND TENON JIG
- 5x Guide bushes sizes 15.9mm, 22mm, 26mm, 28mm & 32mm
- 1x Metal guide bush 30mm
- 4x Clamps
- 1x Guide bush collar
- 1x Set-up Bar
-
