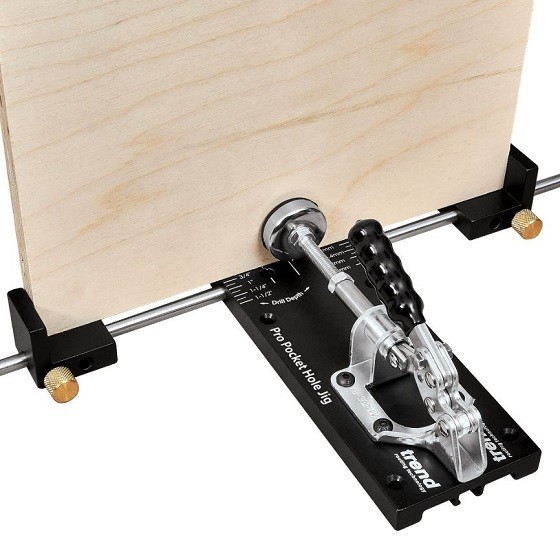

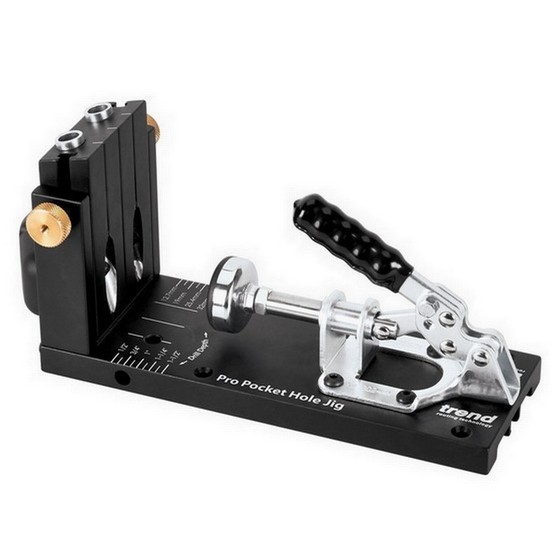

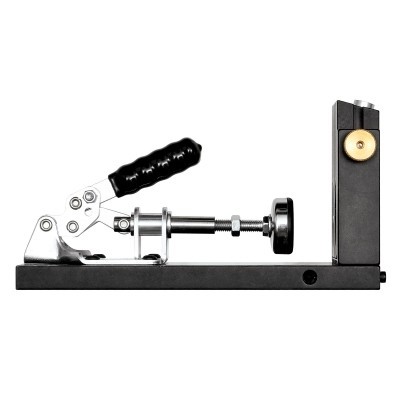

TREND PH/JIG/AK POCKET HOLE PRO JIG KIT WITH STABILISERS

Ref: PH/JIG/AK

Next day delivery available on this item

The New Pocket Hole Jig from Trend, for fast and accurate joining of timber and plywood giving strong instant joints. More

£118.80 inc. VAT

(£99.00 exc. VAT)

Unfortunately this item is currently out of stock.

Email me when this item is back in stock

TREND PH/JIG/AK POCKET HOLE PRO JIG KIT WITH STABILISERS
- Adjustable height to allow material from 12.7mm to 38mm to be jointed
- Solid hardened bushes with fixed pitch of 30mm
- Use on timber, MDF, plywood and blockboard
- Workpiece support and end stop
- Allows a variety of joints to be created individually
- Quick and easy drill bit depth setting turret
- Dust extraction spout
- Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out)
To read more about this product on our blog, click here.
Internal code: TP268330
TREND PH/JIG/AK POCKET HOLE PRO JIG KIT WITH STABILISERS
- Material thickness min.: 12.7 mm
- Material thickness max.: 38 mm
- Material width min.: 38 mm
- Hole pitch: 30 mm
- Drill diameter: 9.5 mm
- Square drive bit size: No.2
- Dust spout ID: 30 mm
- Underside T slot: 12.2/8.4mm x 6mm
TREND PH/JIG/AK POCKET HOLE PRO JIG KIT WITH STABILISERS
- 10 x No.7 x 25mm (1 inch) coarse
- 30 x No.7 x 30mm (1-1/4 inch) fine
- 30 x No.7/8 x 30mm (1-1/4 inch) coarse
- 10 x No.8 x 38mm (1-1/2 inch) coarse
- 10 x No.8 x 50mm (2 inch) coarse
- 10 x No.8 x 63mm (2-1/2 inch) coarse
- 1 x Face clamp
- 1 x HSS drill bit with collar
- 1 x 150mm Square drive bit
- 1 x Hex key 3mm A/F
- 2 x Workpiece support
- 1 x Carry case
